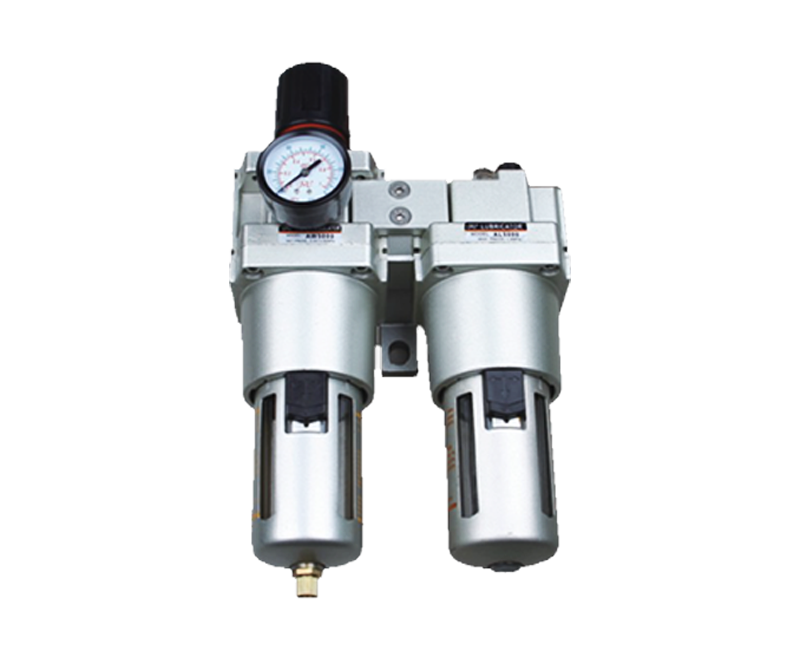

AC series two-piece

Location:	China
Business Type:	Manufacturer, Exporter
Brands:	Own Brand, OEM,
Certificate:	ISO9001, CE
Model:
Terms of payment and delivery:	FOB NINGBO
Minimum order quantity:	1 PCS
Price:	Consultation
Delivery time:	15 days after confirmation of artwork and deposit
Payment method:	TT 30% deposit，balance against BL copy

Quote Now

Specification

Model		AC2010-01	AC2010-02	AC3010-02	AC3010-03	AC4010-03	AC4010-04	AC5010-06	AC5010-10
Port size		G1/8"	G1/4"	G1/4"	G3/8"	G3/8"	G1/2"	G3/4"	G1"
Rating Flow		500L/min		2000L/min		4000L/min		5000L/min
Max Working Pressure		1.0Mpa
Ensured Pressure Resistance		1.5Mpa
Filter Precision		25um(5um 50um)
Adjustable Pressure Range		0.05-0.85Mpa
Nvironment& Fluid Temperature		-5~60℃(Not Frozen)
Recommended Oil		Turbine No. 1 Oil ISOVG32
Container Material		PC
Valve Type		With Over Flow
Protective Cover		NO		lron
Gauge		G36-10-01				G46-10-02
Components	Filter & Regulator	AW2000-01	AW2000-02	AW3000-02	AW3000-03	AW4000-03	AW4000-04	AW5000-06	AW5000-10
	Lubricator	AL2000-01	AL2000-02	AL3000-02	AL3000-03	AL4000-03	AL4000-04	AL5000-06	AL5000-10

Ningbo Hengmin Lingtong Pneumatic Complete Set Co., Ltd.

Ningbo Hengmin Lingtong pneumatic complete set Co., Ltd. (LTPC), located in Xikou, Ningbo, Zhejiang Province, is famous China AC series two-piece Company and OEM AC series two-piece Suppliers. Since its establishment in 1996, LTPC has been rooted in the pneumatic industry for more than 30 years. From a small workshop, LTPC has developed into a 18000 square meter production base with Japanese import processing center and Ningbo Municipal "pneumatic product R & D center".
Relying on advanced equipment, innovative technology and perfect detection means, LTPC provides customized products and all-round services for customers. From F.R.L combination, solenoid valve, directional valve, pneumaitc cylinder and accessories to complete sets of pneumatic systems, our Custom AC series two-piece are all over China, Southeast Asia, the Middle East, Europe and the United States and other markets, and widely affect machinery, metallurgy, food, packaging, textile, electronics and other fields.
