OEM 200 series solenoid valve

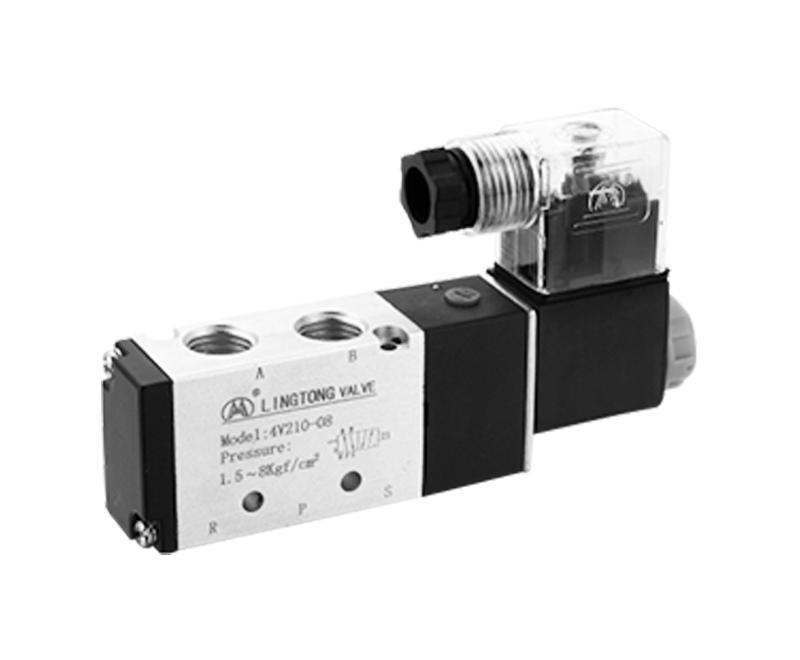

200 series solenoid valve
  • 200 series solenoid valve

200 series solenoid valve

Location:China
Business Type:Manufacturer, Exporter
Brands:Own Brand, OEM,
Certificate:ISO9001, CE
Model:
Terms of payment and delivery:FOB NINGBO
Minimum order quantity:1 PCS
Price:Consultation
Delivery time:15 days after confirmation of artwork and deposit
Payment method:TT 30% deposit，balance against BL copy
Quote Now

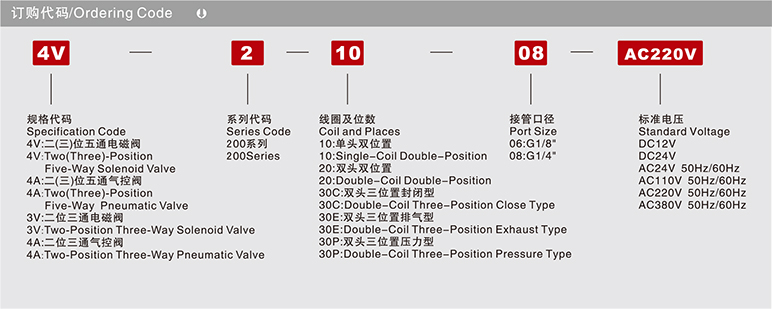

Order code

Specification

Model 3V210-6 3V220-06 3V210-08 3V220-08 4V210-06 4V220-06 4V230C-06 4V230E-06 4V230P-06 4V210-08 4V220-08 4V230C-08 4V230E-08 4V230P-08
3A210-6 3A220-06 3A210-08 3A220-08 4A210-06 4A220-06 4A230C-06 4A230E-06 4A230P-06 4A220-08 4A220-08 4A230C-08 4A230E-06 4A230P-08
Working Medium 40 Micron Filtered Air
Operating Method Internal Pilot Type
Port size

Air Inlet=Air Outlet=Air Exhaust=G1/8"

Air Inlet=Air Outlet=G1/4"Air Exhaust=G 1/8"

Air Inlet=Air Out=Air Exhaust=G1/8"

Air Inlet=G1/4"Air Out=Air Exhaust=G1/8"
The Position Counting TWo- Position Three-Way

Two-Position Five-Way

Three-Position Five-Way

Two-Position Five-Way

Three-Position Five-Way
Working Pressure 0.15-0.8Mpa
Max Pressure Resistance 1.2Mpa
Working Temperature -5-50°C(41-122F)
Power Consumption

AC380V:2.50VA. AC220V:2.0VA.AC110V:2.5VA.AC24V:3.5VA. DC24V:3.0W. DC12V:2.5W
Voltage Range ±10%

Insulation/Protection Class

 F Class IP65(DIN40050)
wire Form Lead Wire or Connector Type
Max Action Frequency 5 Cycle/Sec 3 cyce/Sec  5cyce/sec 3 Cycle/Sec
Shortest Excitation Time 0.05 Second

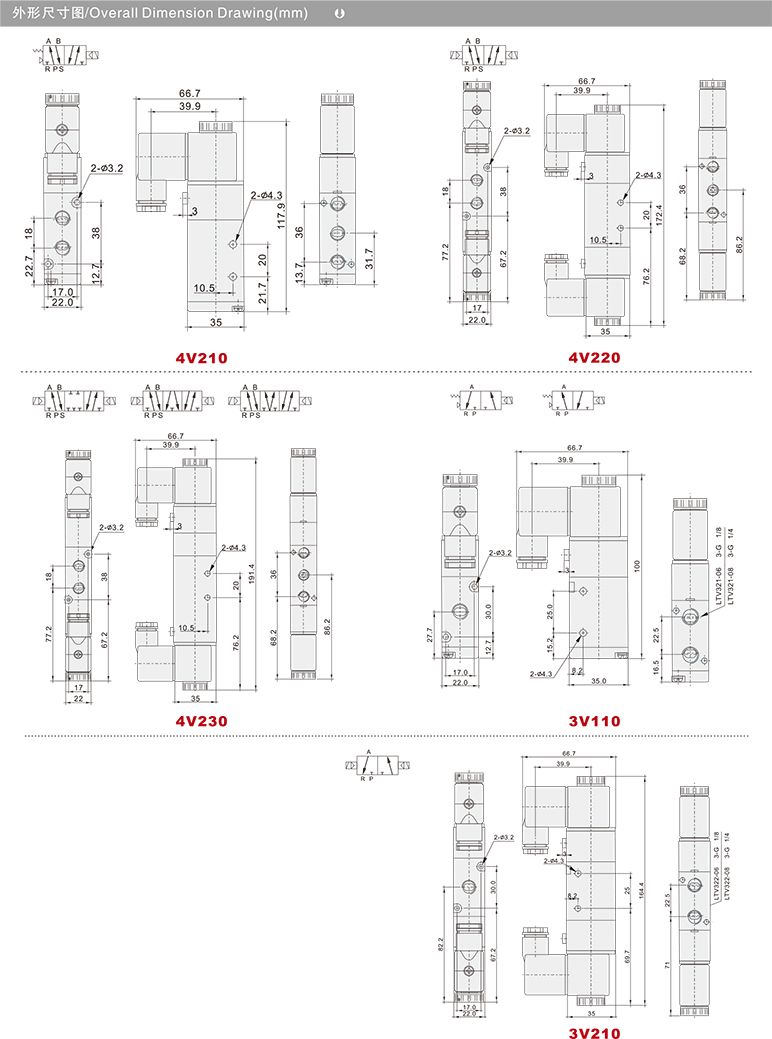

Dimensions
