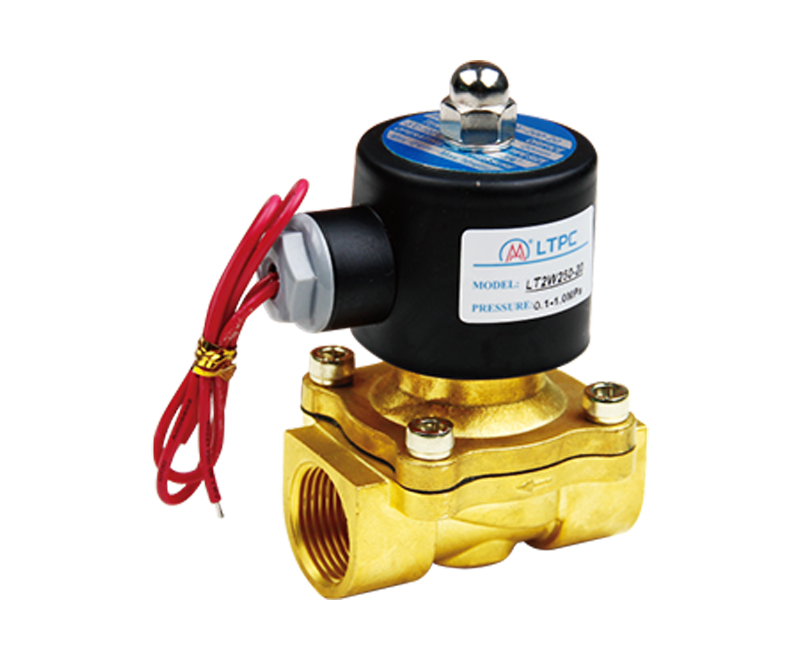

LT2W series two-position two-way direct-acting solenoid valve

Location:	China
Business Type:	Manufacturer, Exporter
Brands:	Own Brand, OEM,
Certificate:	ISO9001, CE
Model:
Terms of payment and delivery:	FOB NINGBO
Minimum order quantity:	1 PCS
Price:	Consultation
Delivery time:	15 days after confirmation of artwork and deposit
Payment method:	TT 30% deposit，balance against BL copy

Quote Now

Specification

型号/Mode	2W160-10	2W160-15	2W200-20	2W250-25	2W350-35	2W400-40	2W500-50
型号/Mode	2S160-10	2S160-15	2S200-20	2S250-25	2S350-35	2S400-40	2S500-50
阀体材质/Material of Body	2W:黄铜/Brass 2S:不锈钢/Stainless steel
工作介质/Working Medium	Air、 Water、Oil
动作方式/Motion Pattern	Direct Drive Type
Aperture of Flow Rate	16mm		20mm	25mm	35mm	40mm	50mm
Port size	3/8"	1/2"	3/4"	1"	1¹/4"	1¹/2"	2"
Working Fluid Viscosity	20CSTS以下(Below)
Working Pressure	0~0.8Mpa
Max Pressure Resistance	1.0Mpa
Working Temperature	-5~80℃
Voltage Range	+15%
Voltage Range	AC(V)(12,24,36,110,220,380)DC(V)(12,24)
Shortest Excitation Time	0.05S

Ningbo Hengmin Lingtong Pneumatic Complete Set Co., Ltd.

Ningbo Hengmin Lingtong pneumatic complete set Co., Ltd. (LTPC), located in Xikou, Ningbo, Zhejiang Province, is famous China LT2W series two-position two-way direct-acting solenoid valve Company and OEM LT2W series two-position two-way direct-acting solenoid valve Suppliers. Since its establishment in 1996, LTPC has been rooted in the pneumatic industry for more than 30 years. From a small workshop, LTPC has developed into a 18000 square meter production base with Japanese import processing center and Ningbo Municipal "pneumatic product R & D center".
Relying on advanced equipment, innovative technology and perfect detection means, LTPC provides customized products and all-round services for customers. From F.R.L combination, solenoid valve, directional valve, pneumaitc cylinder and accessories to complete sets of pneumatic systems, our Custom LT2W series two-position two-way direct-acting solenoid valve are all over China, Southeast Asia, the Middle East, Europe and the United States and other markets, and widely affect machinery, metallurgy, food, packaging, textile, electronics and other fields.
