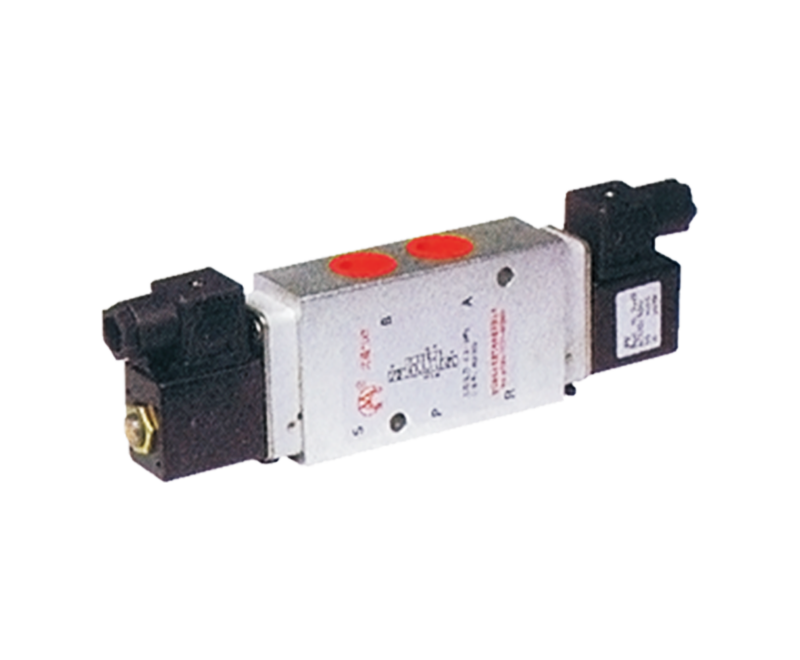

263 Hilong series solenoid valve
| Location: | China |
| Business Type: | Manufacturer, Exporter |
| Brands: | Own Brand, OEM, |
| Certificate: | ISO9001, CE |
| Model: | |
| Terms of payment and delivery: | FOB NINGBO |
| Minimum order quantity: | 1 PCS |
| Price: | Consultation |
| Delivery time: | 15 days after confirmation of artwork and deposit |
| Payment method: | TT 30% deposit，balance against BL copy |
Specification
| Mode | 8020750 | 8022750 | 8021750 | 8021850 | 8022850 | 2630600 | 2636000 | 2636200 | 2637050 | 2637250 |
| Working Medium | 40 Micron Filtered Air | |||||||||
| The Position Counting | Two- position Three-Way | TWo- Position four-Way | TWo- Position Five-Way | |||||||
| Port size |
Air Inlet=Air Outlet=G1/4" |
Air Inlet=Air Outlet=G1/2" |
Air Inlet=Air Outlet Air Inlet=Air Outlet=G1/8" |
Air Inlet=Air Outlet=G1/4" |
Air Inlet=Air Outlet=G1/2" |
|||||
| Working Temperature | -5~50c(41-122F) | |||||||||
| Effective Sectional Area | 10mm²(Cv=0.56) | 40mm²(Cv=2.23) | 4mm²(Cv=0.23) | 10mm²(Cv=0.56) | 40mm²(Cv=2.32) | |||||
| Working Pressure | 0.15-1.0Mpa | |||||||||
| Max Pressure Resistance | 1.2Mpa | |||||||||
| Insulation& Protection Class | F Class/IP65(DIN40050) | |||||||||
| Wire Form | Lead Wire or Connector Type | |||||||||
| Voltage Range | 10% | |||||||||
