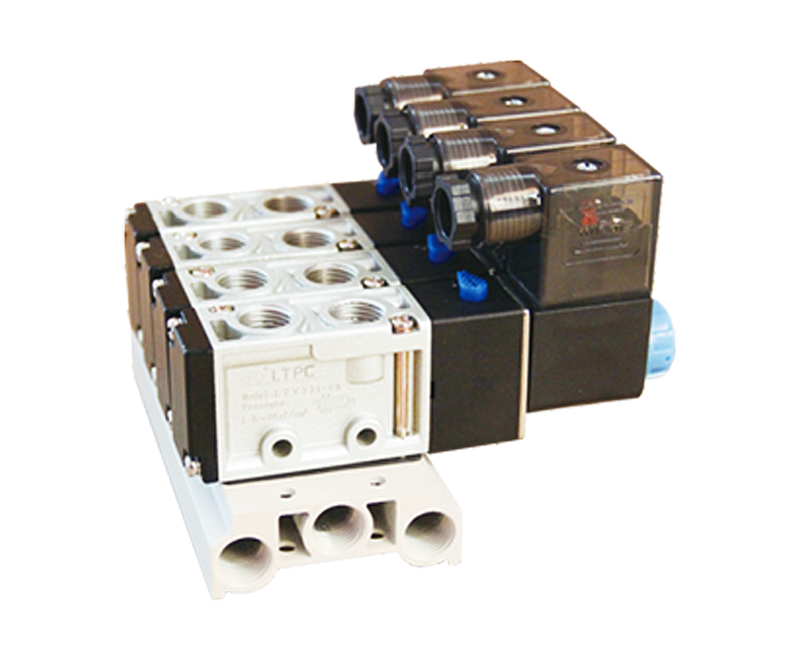

OEM LTVA.520 series die-cast solenoid valve (air control valve)

LTVA.520 series die-cast solenoid valve (air control valve)
  • LTVA.520 series die-cast solenoid valve (air control valve)

LTVA.520 series die-cast solenoid valve (air control valve)

Location:China
Business Type:Manufacturer, Exporter
Brands:Own Brand, OEM,
Certificate:ISO9001, CE
Model:
Terms of payment and delivery:FOB NINGBO
Minimum order quantity:1 PCS
Price:Consultation
Delivery time:15 days after confirmation of artwork and deposit
Payment method:TT 30% deposit，balance against BL copy
Quote Now

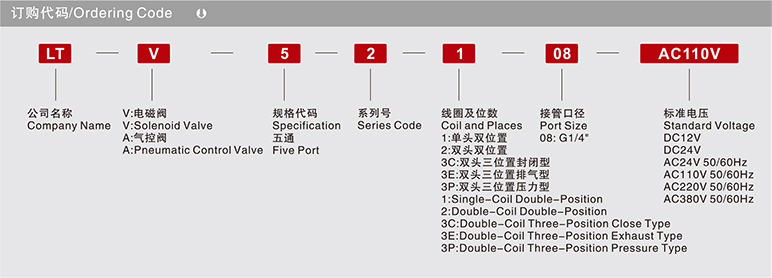

Order code

Specification

Model LTV521-08 LTV522-08 LTV523C-08 LTV523E-08 LTV523P-08
LTA521-08 LTA522-08 LTA523C-08 LTA523E-08 LTA523P-08
Working Medium 40 Micron Filtered Air
Operating Method Internal Pilot Type
Port size

Air Inlet=Air Outlet=1/4" Air Exhaust=G1/8"
The Position Counting Two- Position Five-Way Three- Position Five-Way
Effective Sectional Area 16mm²(Cv=0.89) 12mm²(Cv=0.67)
Working Pressure 0.15-0.8Mpa
Max Pressure Resistance 1.2Mpa
Working Temperature -5-60°C

Protection Class

 IP65
Max Action Frequency 5 Cycle/SecSecond 3 Cycle/SecSecond
Voltage Range -15%~+10%
Shortest Excitation Time 0.05 Second

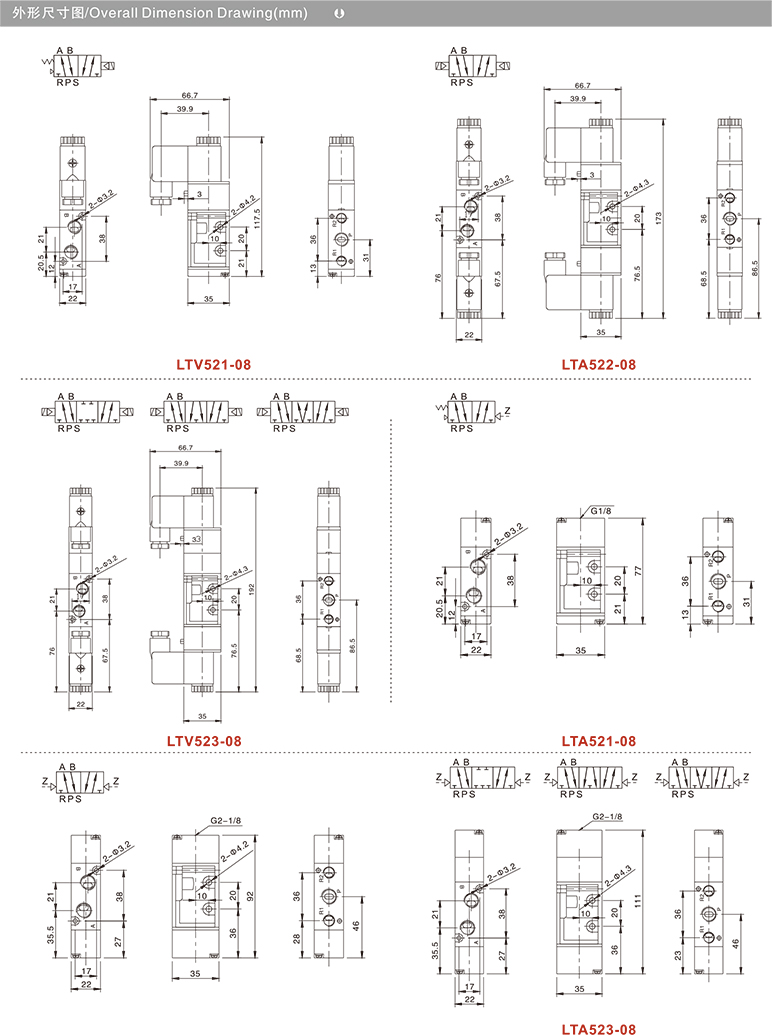

Dimensions

other information
