Aluminium Alloy Pneumatic Air Cylinder Manufacturers, Suppliers

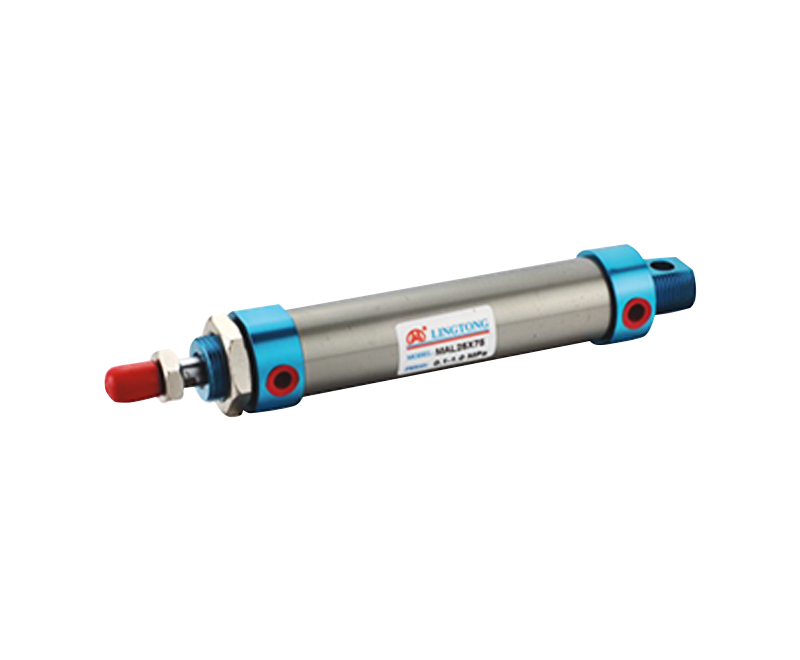

MAL series aluminum alloy mini pneumatic air cylinder

Location:	China
Business Type:	Manufacturer, Exporter
Brands:	Own Brand, OEM,
Certificate:	ISO9001, CE
Model:
Terms of payment and delivery:	FOB NINGBO
Minimum order quantity:	1 PCS
Price:	Consultation
Delivery time:	15 days after confirmation of artwork and deposit
Payment method:	TT 30% deposit，balance against BL copy

Quote Now

Specification

Bore(mm)	16	20	25	32	40
Working Medium	Air
Acting Type	Double Acting or Single Acting
Stroke	10-500mm
Working Pressure	0.1~1.0Mpa
Ensured Pressure Resistance	1.5Mpa
Operating Temperature	-10~70℃（No freezing）
Operating Speed Range	50-800mm/s
Cushion Type	Buffer Cushion

It is an aluminium alloy pneumatic air cylinder with bore sizes of 6mm, 12mm, and 16mm. It has a double-action air system to maintain the output pressure. It is ideal for tight spaces. The compact thin design is ideal for installation and maintenance in small areas. The cylinder is lubrication-free, making it ideal for small spaces.

The material used to produce a pneumatic air cylinder is often made from aluminum, nickel-plated brass, or steel. The material selection is based on the load, temperature, and stroke length of the pneumatic cylinder, and on the type of application it will be used for. A few common designs are described below. First, there's the basic industrial cylinder, which has an internal piston and attaches to a machine. A second design option is a high-grade steel cylinder, which has a high strength-to-weight ratio.

Aluminum cylinders are strong and lightweight, but are also corrosion-resistant and weatherproof. They come in NFPA-standard C Series and non-rotating dual rod D Series. Both of these designs are ideal for pneumatic equipment and are available in a variety of stroke specifications. Aluminium cylinders are lightweight and durable, which makes them ideal for portable devices. You can also choose from a wide range of stroke specifications and configurations to meet your specific needs.

Double-acting pneumatic cylinders are designed for pushing loads. Their materials vary in resistance to pressure and temperature. Single-acting pneumatic cylinders are mostly used in the automotive industry and hydraulic rams. Their material composition also depends on the type of application. Rodless pneumatic cylinders are used for space-saving purposes and are often made of sturdy material. They can even replace a hydraulic cylinder in specific applications.

About

Ningbo Hengmin Lingtong Pneumatic Complete Set Co., Ltd.

Ningbo Hengmin Lingtong pneumatic complete set Co., Ltd. (LTPC), located in Xikou, Ningbo, Zhejiang Province, is famous China Aluminium Alloy Pneumatic Air Cylinder Manufacturers and Wholesale Aluminium Alloy Pneumatic Air Cylinder Suppliers. Since its establishment in 1996, LTPC has been rooted in the pneumatic industry for more than 30 years. From a small workshop, LTPC has developed into a 18000 square meter production base with Japanese import processing center and Ningbo Municipal "pneumatic product R & D center".
Relying on advanced equipment, innovative technology and perfect detection means, LTPC provides customized products and all-round services for customers. From F.R.L combination, solenoid valve, directional valve, pneumaitc cylinder and accessories to complete sets of pneumatic systems, our Wholesale Aluminium Alloy Pneumatic Air Cylinder are all over China, Southeast Asia, the Middle East, Europe and the United States and other markets, and widely affect machinery, metallurgy, food, packaging, textile, electronics and other fields.
