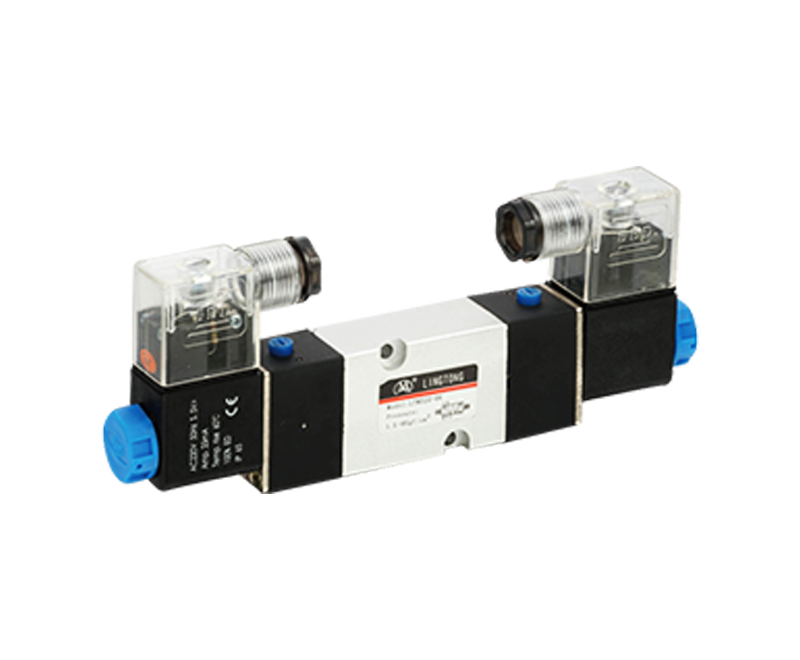

4M series plate solenoid valve

Location:	China
Business Type:	Manufacturer, Exporter
Brands:	Own Brand, OEM,
Certificate:	ISO9001, CE
Model:
Terms of payment and delivery:	FOB NINGBO
Minimum order quantity:	1 PCS
Price:	Consultation
Delivery time:	15 days after confirmation of artwork and deposit
Payment method:	TT 30% deposit，balance against BL copy

Quote Now

Specification

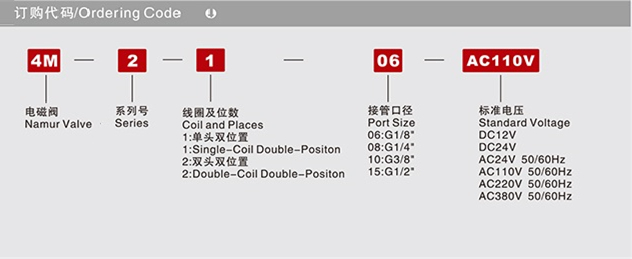

Model	4M210-06	4M220-06	4M210-8	4M220-08	4M310-08	4M320-8	4M310-10	4M320-10	4M410-15	4M420-15
Working Medium	40 Micron Filtered Air
Operating Method	Internal Pilot Type
Port size	Air Inlet=Air Exhaust=G1/8"		Air Inlet=G1/4"Air Exhaust=G1/8"		Air Inlet=Air Exhaust=G1/4"		Air Inlet=进气=G3/8"Air Exhaust=G1/4"		Air Inlet=Air Exhaust=G1/2"
The Position Counting	TWo- Position Three-Way
Effective Sectional Area	14mm²(Cv=0.78)		16mm²(Cv=0.89)		25mm²(Cv=1.39)		30mm²(Cv=1.67)		50mm²(Cv=2.79)
Lubricant	Need
Working Pressure	0.15-0.8Mpa
Max Pressure Resistance	1.2Mpa
Working Temperature	-5-50°C(-41-140F)
Power Consumption	AC380V:2.50VA. AC220V:2.0VA.AC110V:2.5VA.AC24V:3.5VA. DC24V:3.0W. DC12V:2.5W
Voltage Range	-15%~+10%
Insulation/Protection Class	F Class IP65(DIN40050)
wire Form	Lead Wire or Connector Type
Max Action Frequency	5 Cycle/Sec
Shortest Excitation Time	0.05 Second

Ningbo Hengmin Lingtong Pneumatic Complete Set Co., Ltd.

Ningbo Hengmin Lingtong pneumatic complete set Co., Ltd. (LTPC), located in Xikou, Ningbo, Zhejiang Province, is famous China 4M series plate solenoid valve Company and OEM 4M series plate solenoid valve Suppliers. Since its establishment in 1996, LTPC has been rooted in the pneumatic industry for more than 30 years. From a small workshop, LTPC has developed into a 18000 square meter production base with Japanese import processing center and Ningbo Municipal "pneumatic product R & D center".
Relying on advanced equipment, innovative technology and perfect detection means, LTPC provides customized products and all-round services for customers. From F.R.L combination, solenoid valve, directional valve, pneumaitc cylinder and accessories to complete sets of pneumatic systems, our Custom 4M series plate solenoid valve are all over China, Southeast Asia, the Middle East, Europe and the United States and other markets, and widely affect machinery, metallurgy, food, packaging, textile, electronics and other fields.
